Profibus-DP card
Profibus is one of the popular field bus standard. The use of it can greatly improve the communication speed of the whole system, so as to achieve the purpose of real-time control. Yi Chuang Fei PROFIBUS DP card strictly follow the Profibus DP-V0 specification for the design and development, it can be very convenient to and support the specification of the Profibus DP master communication. Yi Chuang Fei record of PROFIBUS DP field bus with advantages such as high speed, low cost and widely used for equipment control system and distributed I / O communication.
Voltage level
ACDP01：DC5V
ACDP02：DC24V- Product features
- Application occasions
- Data download
Profibus-DP field bus is widely used in manufacturing automation, process automation and building automation industry with its advantages of high speed and low cost, and his physical layer data transmission is dependent on RS-485 interface.
PROFIBUS DP bus signal can also be used shielded twisted pair transmission, the data rate is 9.6kbps theory of transmission distance is 1200 meters, baud rate 12mbps theory of transmission distance is 100 meters. Yi hit a fly 110/100/300 PROFIBUS DP communication to the expansion card, after the installation of the card, Wilson hit fly 110/100/300 series inverter can access any PROFIBUS DP network. Profibus-DP embedded inverter, before installation, please be sure to disconnect the power supply, the inverter power supply indicator lamp is completely extinguished after the installation.

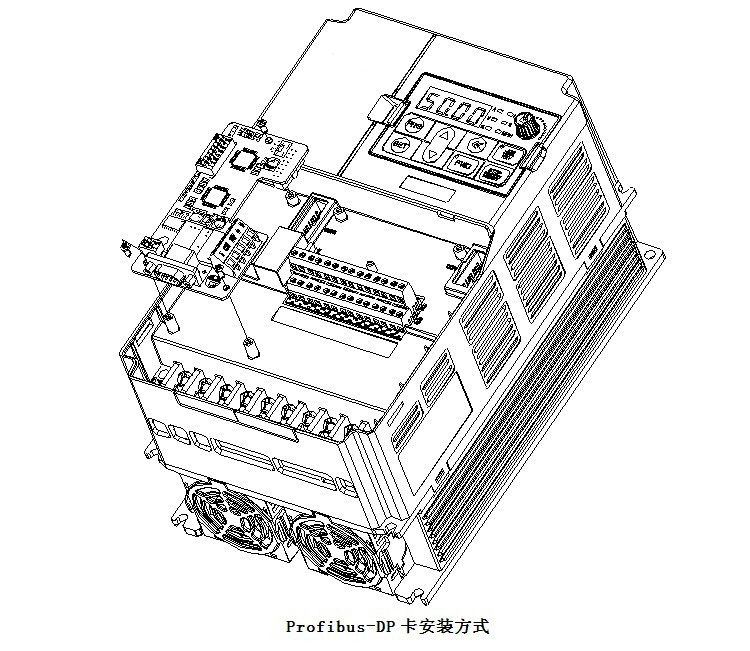

Installation method as shown below:
Product model description
|
Product model |
Product description |
remarks |
|
ACDP01 |
ECF300 standard Profibus-DP expansion parts |
5V + 5%/ special interface |
|
ACDP02 |
Universal Profibus-DP extension accessories
|
24V + 10%/ external connection |
Schematic diagram of product interface
Standard 1:Profibus-DP interface
Standard 2: internal termination resistor selection pull switch
Standard 3: indicator D1
Standard 4: indicator D2
Standard 5:Profibus-DP code switch from station address
Standard 6:ACDP01 and AC80 converter interface
Standard 7:ACDP02 and slave device interface.
