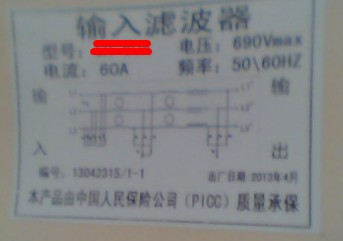

wave filter
Frequency converter filter is a kind of passive low pass filter, the filter is based on the frequency converter in the work, the power grid and other digital electronic equipment interference spectrum component of electromagnetic compatibility characteristics and specially designed. Not only can effectively inhibit the propagation along the power line spread to interference, but also can greatly reduce the radiated interference generated in electronic equipment, materials and components are the most appalling conditions tested, has the advantages of small size, without a fan, on-site installation and operation is convenient for all brands of frequency converter.
- Product features
- Application occasions
- Data download
|
Governor power Frequency converter power KW |
input
|
Outline dimension
（mm） |
Installation dimensions （mm） |
Output filter
|
Outline dimension
（mm） |
|
0.75 |
ECF-301C10A |
152*93*56 |
110*70 |
ECFS-301C10A |
152*93*56 |
|
1.5 |
ECF-301C10A |
152*93*56 |
110*70 |
ECFS-301C10A |
152*93*56 |
|
2.5 |
ECF-301C10A |
152*93*56 |
110*70 |
ECFS-301C10A |
152*93*56 |
|
4 |
ECF-301C15A |
152*93*56 |
110*70 |
ECFS-301C15A |
152*93*56 |
|
5.5 |
ECF-301C15A |
200*108*60 |
150*85 |
ECFS-301C15A |
200*108*60 |
|
7.5 |
ECF-301C20A |
200*108*60 |
150*85 |
ECFS-301C20A |
200*108*60 |
|
11 |
ECF-301C30A |
200*108*60 |
150*85 |
ECFS-301C30A |
200*108*60 |
|
15 |
ECF-301C40A |
200*108*60 |
150*85 |
ECFS-301C40A |
200*108*60 |
|
18 |
ECF-301C50A |
200*108*60 |
150*85 |
ECFS-301C50A |
200*108*60 |
|
22 |
ECF-301C60A |
200*108*60 |
150*85 |
ECFS-301C60A |
200*108*60 |
|
30 |
ECF-301C80A |
338*175*107 |
260*140 |
ECFS-301C80A |
338*175*107 |
|
37 |
ECF-301C110A |
338*175*107 |
260*140 |
ECFS-301C110A |
338*175*107 |
|
45 |
ECF-301C125A |
338*175*107 |
260*140 |
ECFS-301C125A |
338*175*107 |
|
55 |
ECF-301C150A |
338*175*107 |
260*140 |
ECFS-301C150A |
338*175*107 |
|
75 |
ECF-301C200A |
400*185*112 |
300*150 |
ECFS-301C200A |
400*185*112 |
|
93 |
ECF-301C250A |
400*185*112 |
300*150 |
ECFS-301C250A |
400*185*112 |
|
110 |
ECF-301C275A |
400*185*112 |
300*150 |
ECFS-301C275A |
400*185*112 |
|
132 |
ECF-301C330A |
400*185*112 |
300*150 |
ECFS-301C330A |
400*185*112 |
|
160 |
ECF-301C450A |
378*220*155 |
229*194 |
ECFS-301C450A |
378*220*155 |
|
187 |
ECF-301C500A |
444*256*162 |
290*230 |
ECFS-301C500A |
444*256*162 |
|
200 |
ECF-301C510A |
444*256*162 |
290*230 |
ECFS-301C510A |
444*256*162 |
|
220 |
ECF-301C540A |
444*256*162 |
290*230 |
ECFS-301C540A |
444*256*162 |
|
250 |
ECF-301C625A |
444*256*162 |
290*230 |
ECFS-301C625A |
444*256*162 |
|
315 |
ECF-301C800A |
444*256*162 |
290*230 |
ECFS-301C800A |
444*256*162 |
|
375 |
ECF-301C1000A |
444*256*162 |
290*230 |
ECFS-301C1000A |
444*256*162 |
|
400 |
ECF-301C1100A |
444*256*162 |
290*230 |
ECFS-301C1100A |
444*256*162 |

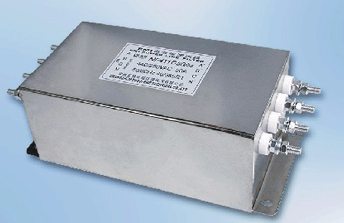

Appearance diagram,
